Matsushima Pull Cord Switch

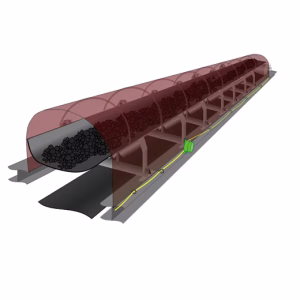

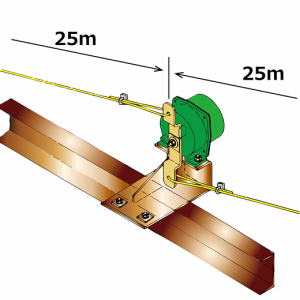

Matsushima Pull Cord Switch is an emergency stop switch to stop the conveyor belt instantly when an accident happens. The Pull Cord Switch is  designed in a way that it should be installed at the side of belt conveyor while mounted along the conveyor and the switch can be actuated at any position. According to the Industrial Safety & Health Regulations, it has been regulated to install the Pull Cord Switch to conveyor belts in Japan for optimum conveyor protection.

Description

Matsushima Pull Cord Switch Features:

  • Large-size switch having large cord tensions and durability
  • Two-way operation type, workable from both directions
  • Provided two contacts for stop and alarm

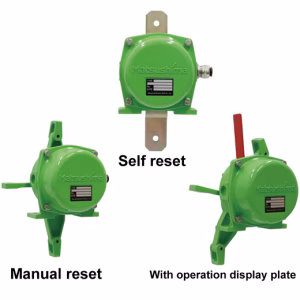

  • Types with an operation-indicating plate are available
  • Flameproof type and dust-ignition-proof type are available

Specification

Enclosure Type ELAW : Weather proof, IP67

(ELAW-21 / ELAW-31 / ELAW-61P)

Type ELAM : Flameproof, d2G4

(ELAM-21W / ELAM-31W / ELAM-61PW)

Type ELADP : Dust-ignition-proof, SDP13

(ELADP-22W / ELADP-32W / ELADP-62PW)

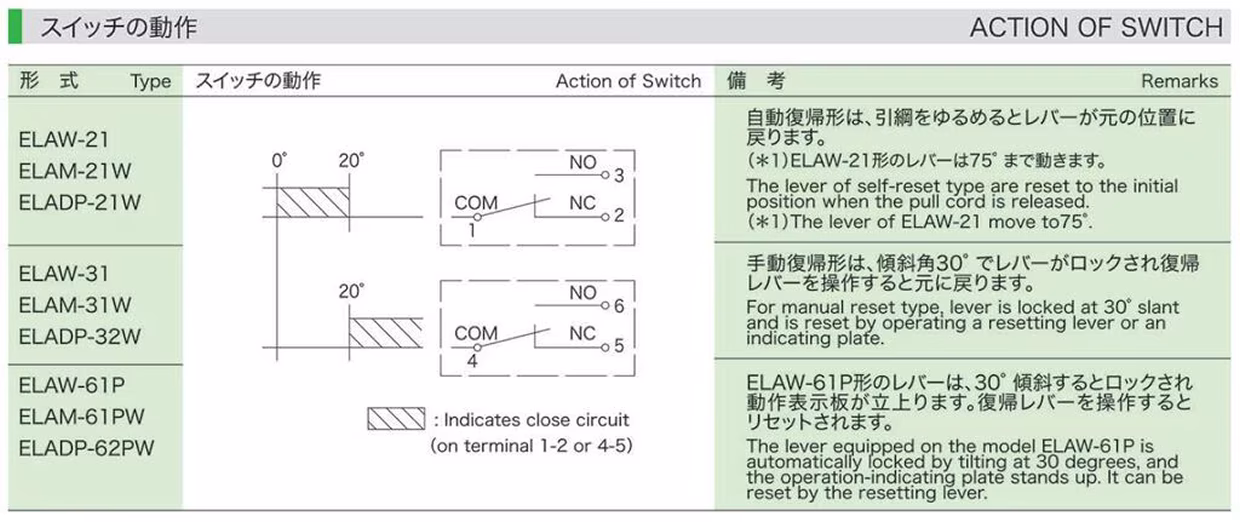

Contacts 2c
Capacity 15A – 125, 250VAC, 1/2A – 125VDC
Operating Torque 49±9.8N (5±1kgf)
Lead Outlet Type ELAW : Cable size Ø6 ~ Ø12

Type  ELAM : G3/4

Type: ELADP : G3/4

Temperature Type ELAW : -20˚C ~+ 60˚C

Type ELAM : -10˚C ~+ 40˚C

Type ELADP : -10˚C ~+ 40˚C

Coating Colour Munsell 7.5GY 6/10

Indicating Plate Munsell 5R 4/13
